| Specification Category | Details | ||
|---|---|---|---|

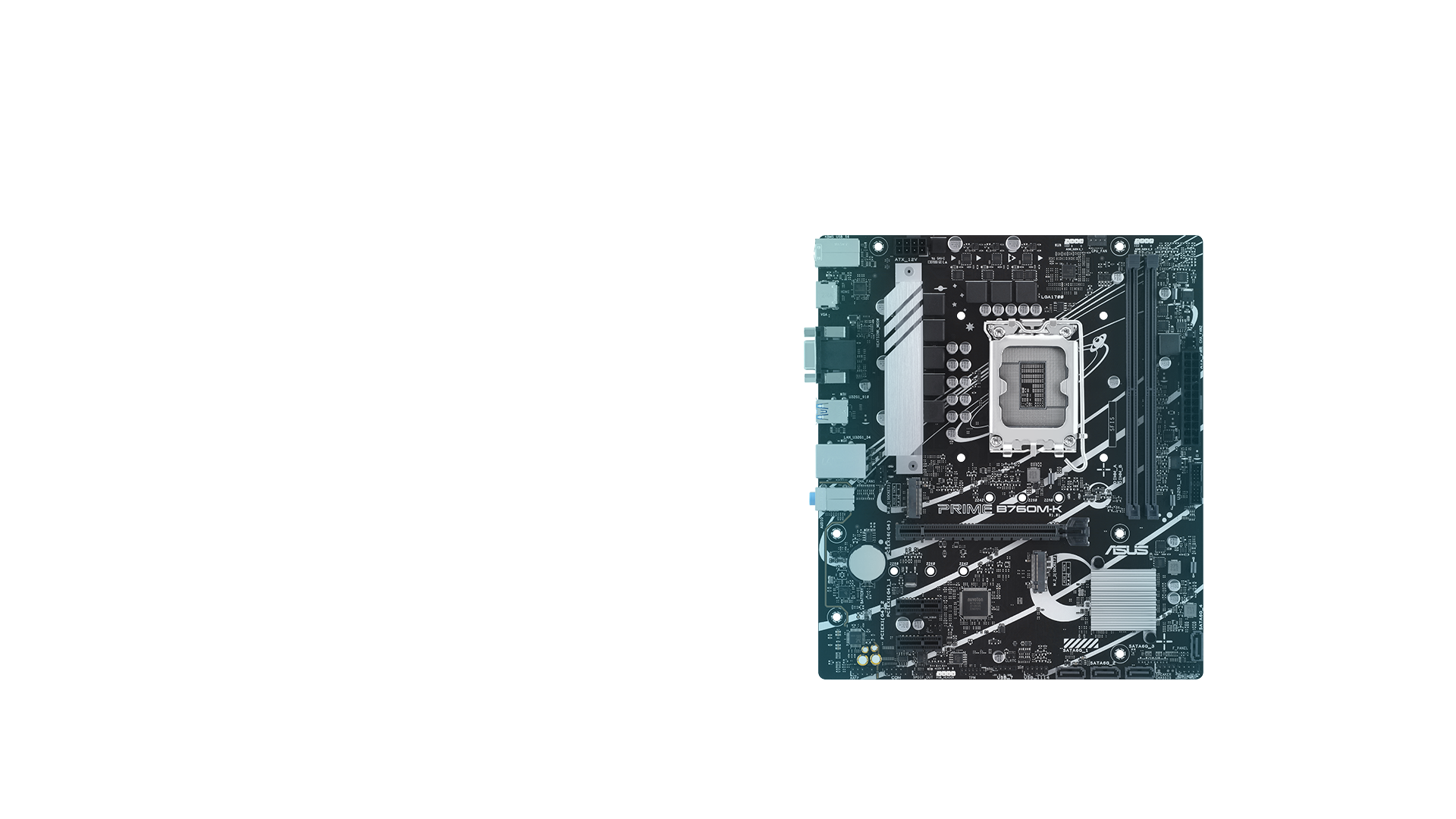

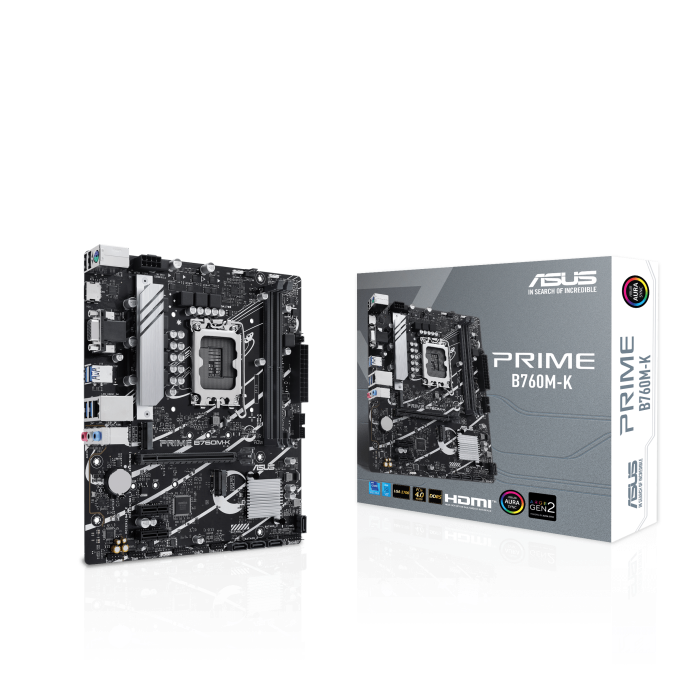

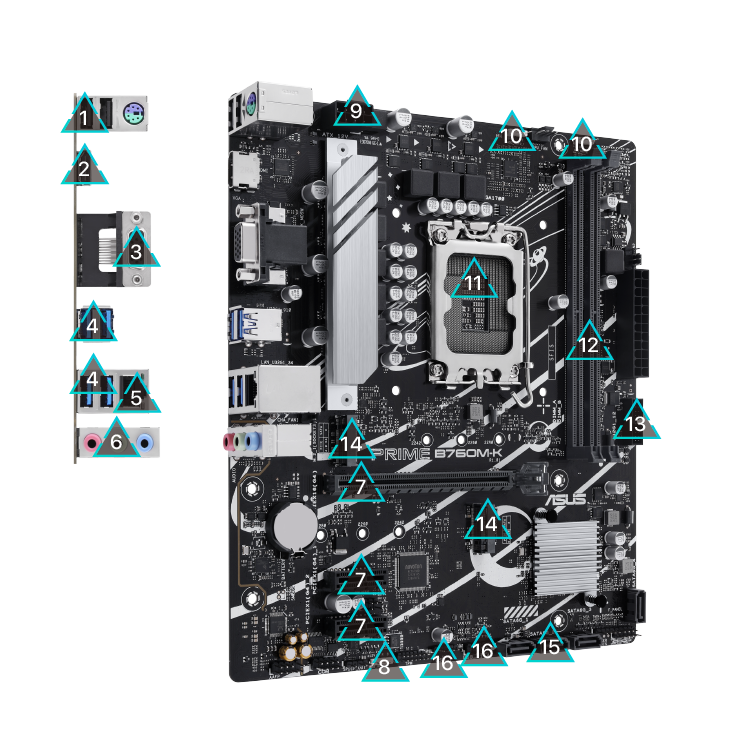

| Model / SKU | ASUS Prime B760M-K (197105198517) | ||
| Chipset | Intel® B760 Chipset (LGA1700) | ||
| CPU Support | Intel® 14th, 13th & 12th Gen Core™, Pentium® Gold & Celeron® Processors (LGA1700) | ||
| Memory Type | DDR5 Dual-Channel | ||
| Memory Slots | 2 x DIMM DDR5 | ||
| Maximum Memory | Up to 64 GB (96 GB reported by some listings) | ||
| Memory Speeds | Supports DDR5 up to ~8000 MHz (OC), XMP | ||
| PCIe / Expansion Slots | 1 x PCIe 4.0 x16 + 2 x PCIe 4.0 x1 | ||
| Storage Interfaces | 2 x PCIe 4.0 M.2 slots + 4 x SATA 6 Gb/s (RAID support) | ||
| Onboard Graphics Outputs | 1 x HDMI + 1 x VGA (requires CPU with iGPU) | ||
| USB Ports (Rear / Front) | Rear: 4 x USB 3.2 Gen1 + 2 x USB 2.0; Front headers: USB 3.2 Gen1 + USB 2.0 | ||
| Networking | Realtek 2.5Gb Ethernet LAN | ||
| Audio | Realtek 7.1 High-Definition Audio CODEC | ||
| Special Features | Aura Sync RGB headers, Fan Xpert 2+, hybrid fan headers | ||
| Form Factor | micro-ATX (24.4 × 21.1 cm) | ||
